Panga Specs & Models
Boat Specs
| BOAT MODEL | LOA. | BEAM | WEIGHT | CAPACITY | TRANSOM HEIGHT | HP RECOMMENDED (Single Motor) | Twin Motor |
|---|---|---|---|---|---|---|---|
| W-16 | 15.96 | 4.59 | 374 | 992 | 22″ | 9.9 – 25 | - |
| W-22 | 21.98 | 6.32 | 816 | 2425 | 22″ | 40 – 75 | - |
| W-22 B/A | 22.11 | 6.43 | 1,014 | 2425 | 22″ | 40 – 75 | - |
| W-25 | 25.08 | 6.03 | 992 | 2646 | 22″ | 60 – 115 | - |
| W-25 B/A | 25.13 | 6.03 | 1146 | 2646 | 22″ | 60 – 115 | - |
| W-267 B/A | 26.04 | 7.18 | 1602 | 3181 | 25″ | 100 – 200 | 40 - 90 |
| W-29 | 28.87 | 7.60 | 1411 | 5511 | 22″ | 115 – 250 | - |
| W-33 | 32.71 | 7.77 | 1808 | 6615 | 22″ | 115 – 250 | - |
Engine/Boat Performance Specs
| BOAT MODEL | MOTOR | WEIGHT AS TESTED | RPM | MPH | MPG |
|---|---|---|---|---|---|
| W-22 | F70 YAMAHA | 1400 | 6300 | 35 | 3.2 |
| W-22 | F70 YAMAHA | 1400 | 4600 | 25 | 6.2 |
| W-25 | F70 YAMAHA | 1550 | 6300 | 38 | 5.4 |
| W-25 | F70 YAMAHA | 1550 | 4600 | 25 | 7.4 |
| W-25 B/A | 115 YAMAHA | 1800 | 6300 | 48 | 4.6 |
| W-25 B/A | 115 YAMAHA | 1800 | 4600 | 34 | 6.5 |
| W-267 B/A | 150 YAMAHA | 2300 | 6300 | 45 | 5.0 |
Please Note: Results may very from those shown above

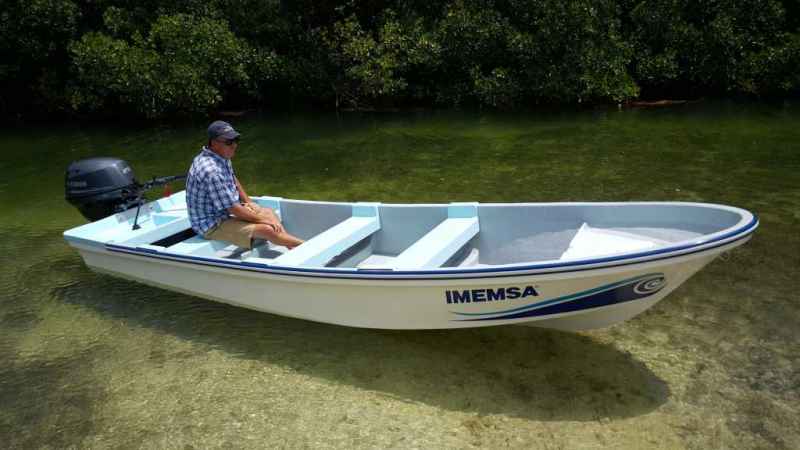

W-16
W-22

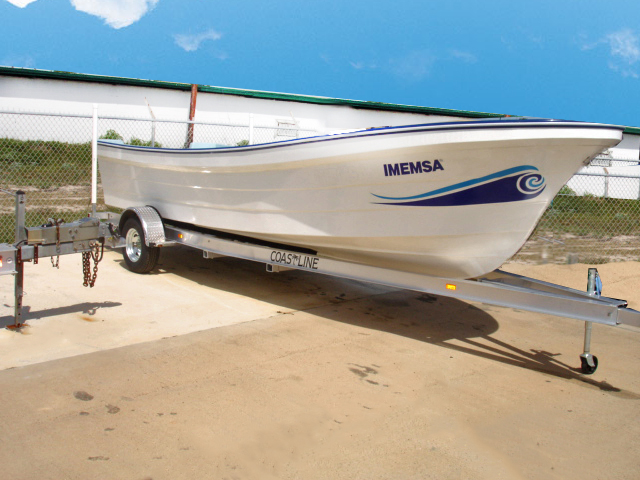

W-22 B/A
W-25
W-25 B/A

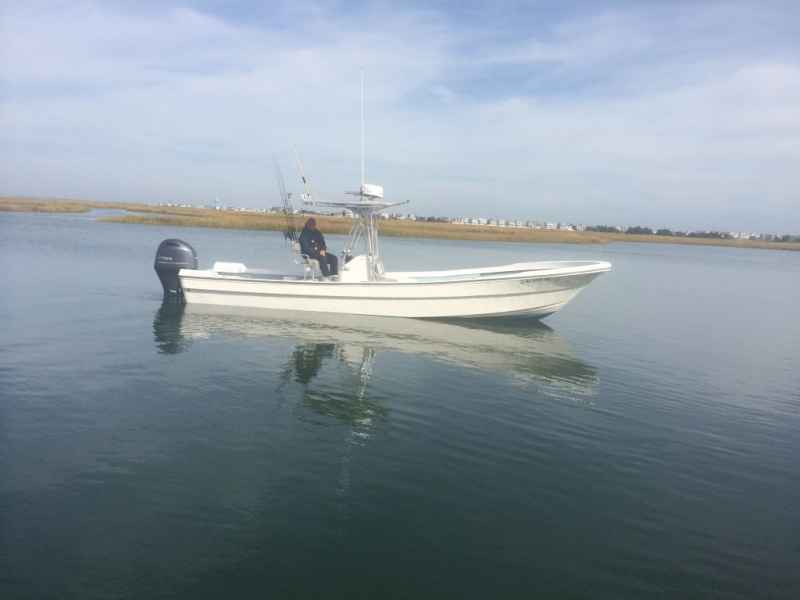

W-29
W-33
